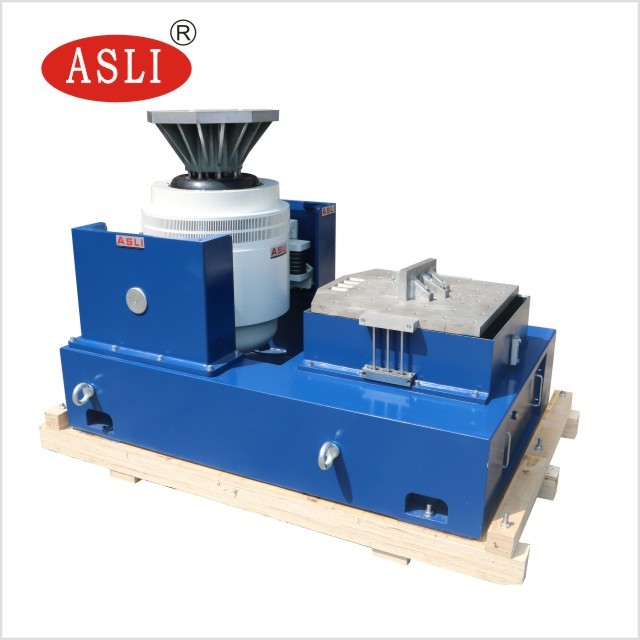

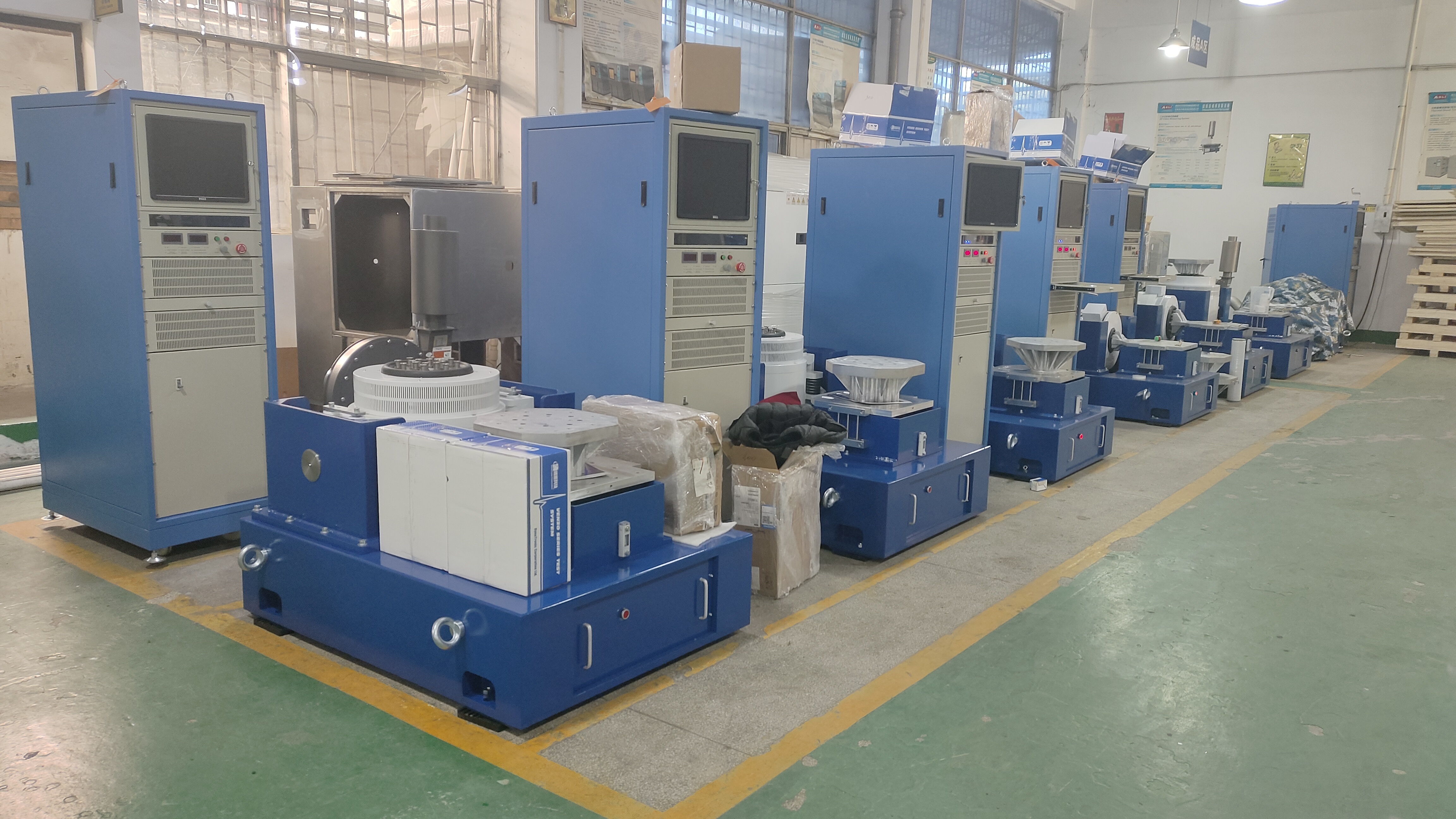

ANSI C 136.31 XYZ Axis Vibration Testing Equipment For Street Lamps
Application
High Frequency Vibration Shaker adopted the 'double-magnetic circuit structure','self-generated skeleton action circles', 'Airborne Support' and 'roller bearings and linear guidance','trunnion isolation' advanced modern technology and special technology, can be completed in X, Y, Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine) pulse and shock response spectrum test. It widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields.
Main Paramters:
(1) Rated Force: sine force10000N; random force 10000N; shock force 20000N;
(2) Frequency Range:3Hz to 3000Hz, Fixed frequency, sweep back and forth, sine, random, shock
(3) Sweep-frequency Mode: linear, logarithmic, sweep back and forth, fixed frequency
(4) Sweep-frequency Times: 1 to 32767
(5) Sweep-frequency Time: fixed frequency/single 1-3600mins, sweep-frequency curves can be displayed.
(6) Max. Acceleration1000m/s2 (non load)
(7) Max. Speed: 1.8/s
(8) Max. Displacement:51mmp-p (non load), double peak
(9) Impact Displacement: 51mm
(10) Weight of Moving Coil:14kg
(12) Vibration Wave: sine, random, shock
(13) Diameter of the Moving Coil: Φ240 mm
(14) Vibration System Dimension: W1060xH750xD845mm
(15) Vibration System weight: 960KG

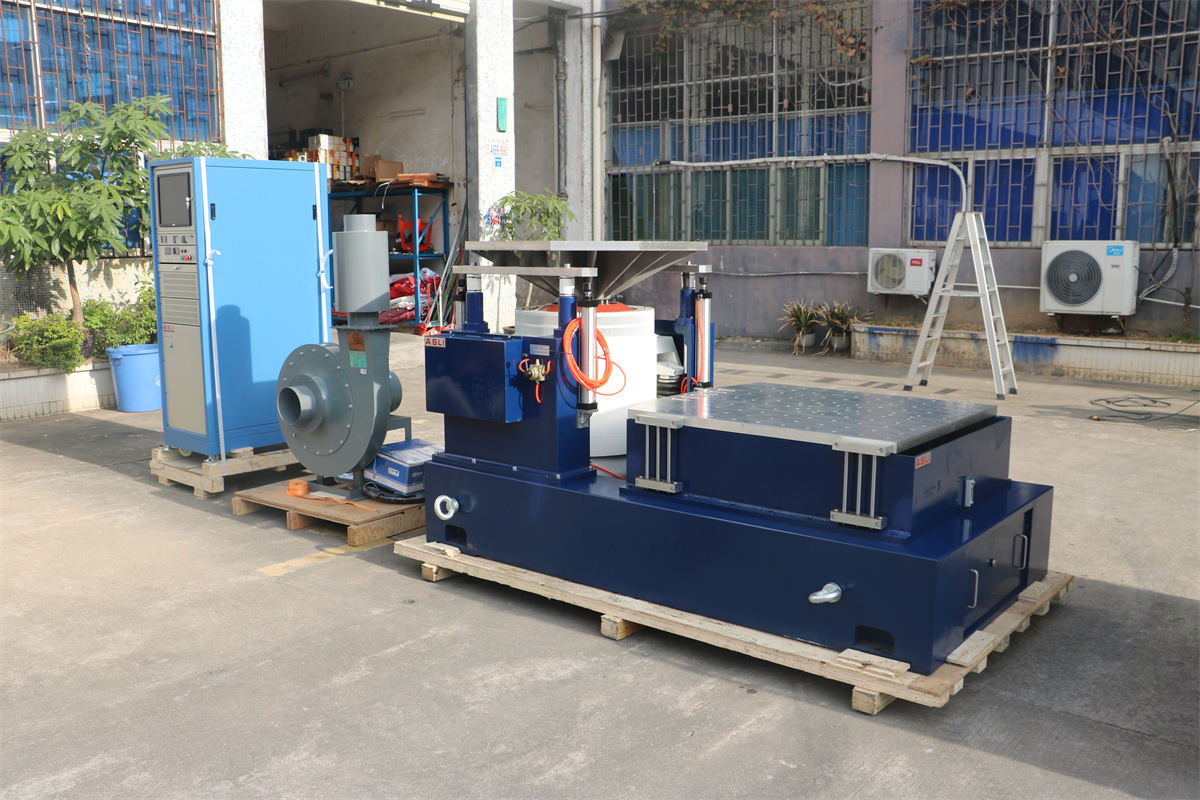

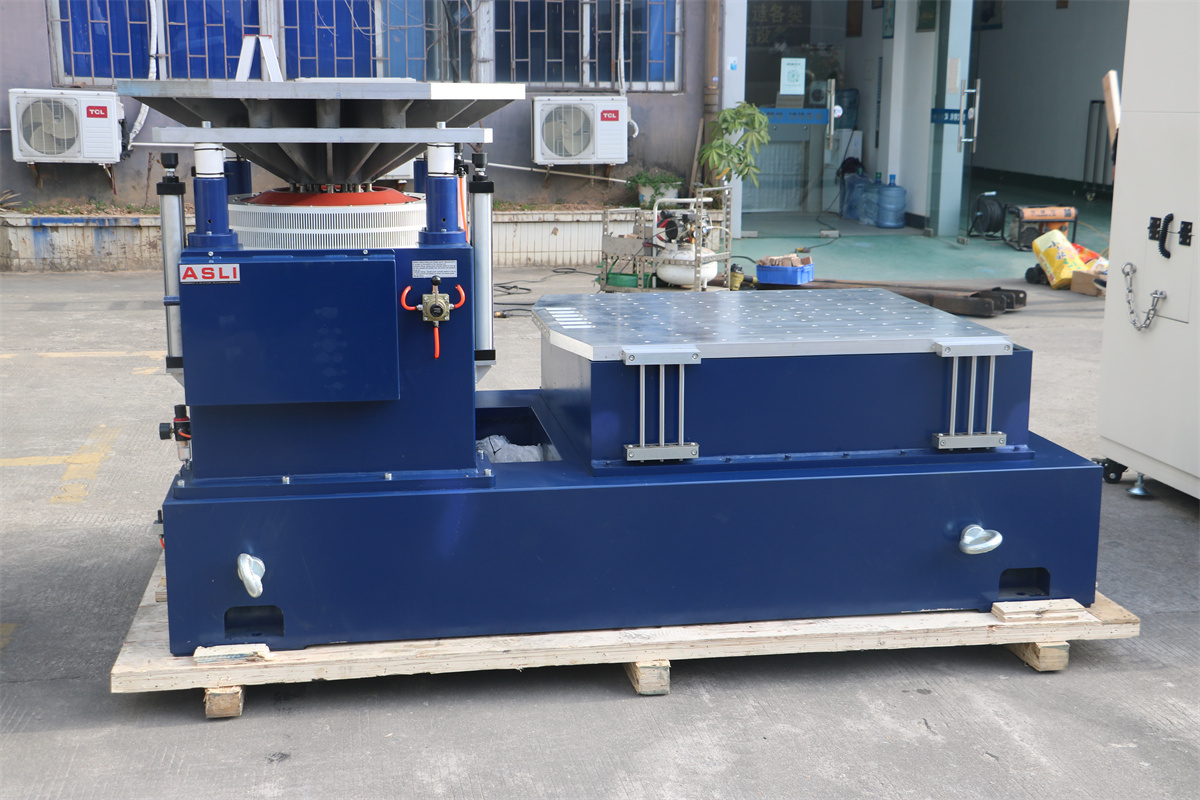

(16) 600mm*600mm vertical expander and 600*600mm horizontal slip table
Technical Parameters:
| Name | Packing Vibration Table/Vibration Table Tester for Auto Parts | ||||||||
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s2) | Rated Speed(m/s) | Rated displacement (p-p)mm | Max. Loading (Kg) | moving coil (Kg) | Dimension of Moving coil (mm) |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |

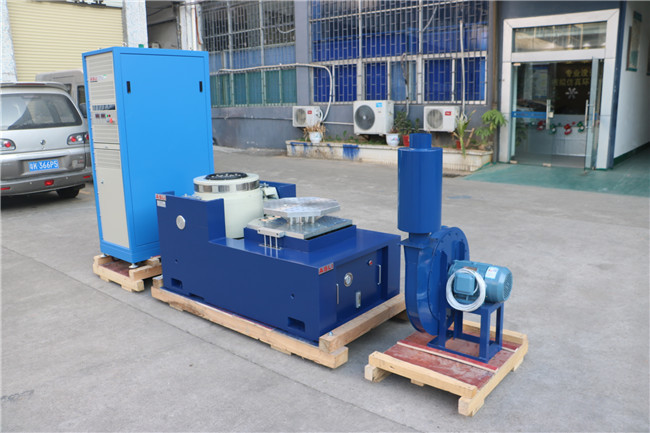

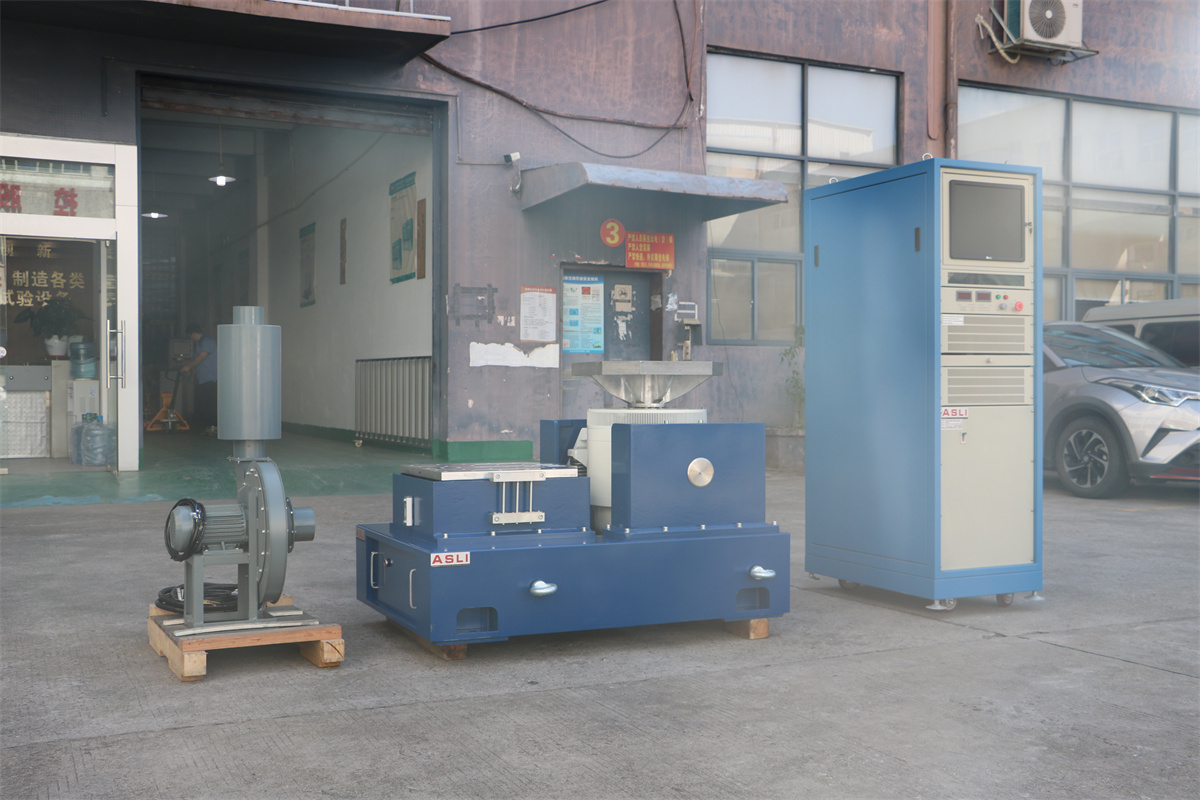

(1)Vibration Generator 1 set
(2)Vibration Controller 1 set
(3)Communication Connection Chamber 1 set
(4)DA-10 Power Amplifier 1 set
(5)Excitation Power 1 pc
(7)Driver Software 1 set
(8)Cooling System 1 set
(9)Industrial Computer 1 set
(10)Color Printer 1 set(Optional)
(11)Acceleration Sensor (include output line) 1 pc
(12)Vibration Fixture 1 set (optional, According to the test sample
Digital Vibration Controller
Vibration controller is the latest design by our company
that adopts international advanced distributed system
architecture, and its core is the latest TMS320 series
32-bit floating-point high-speed processor of TI
company. Test report is automatically generated in
Microsoft Word. During or after the testing, the
test report can be edited, and then generated
automatically or manually.
Features:
Please feel free to contact us if you have any doubt or needs about ANSI C 136.31 XYZ Axis Vibration Testing Equipment For Street Lamps
