Electromagnetic High Frequency Vibration Test Machine with 20KN Force and ISTA 3A Compliance for Packaged Product Testing

1
MOQ
$26,890
السعر
Electromagnetic High Frequency Vibration Test Machine with 20KN Force and ISTA 3A Compliance for Packaged Product Testing
ميزات صالة عرض منتوج وصف طلب عرض أسعار
ميزات
مواصفات
اتجاه الاهتزاز: الاهتزاز الرأسي
قوة الاهتزاز: 20kn
طريقة التحكم: التحكم في الكمبيوتر
تسريع: 100g
نطاق التردد: 3 ~ 3500Hz
وزن الملف المتحرك: 30 كجم
نوع الطاقة: إلكتروني
تصنيف قوة الجيب: 10000N (ES-10) ، 20000N (ES-20) ، 30000N (ES-30) ، 40000N (ES-40)
التسارع المقدر: 1000 م / ثانية 2
السرعة المقدرة: 1.8 م/ث
النزوح المقدر: 70 مم (ES-10) ، 80 مم (ES-20) ، 11100 مم (ES-30) ، 100 مم (ES-40)
ماكس التحميل: 270 كجم (ES-10) ، 300 كجم (ES-20) ، 450 كجم (ES-30) ، 500 كجم (ES-40)
وزن الملف المتحرك: 14 كجم (ES-10) ، 30 كجم (ES-20) ، 40 كجم (ES-30) ، 50 كجم (ES-40)
تحريك بُعد الملف: φ240mm (ES-10) ، φ320mm (ES-20) ، φ450mm (ES-30 ، ES-40)
نطاق التردد: 3-3000Hz (ES-10 ، ES-20) ، 3-2800Hz (ES-30 ، ES-40)
إبراز:

20KN Vibration Test Machine,ISTA 3A Vibration Shaker System,100g Vibration Test Equipment

,

ISTA 3A Vibration Shaker System

,

100g Vibration Test Equipment
معلومات اساسية
مكان المنشأ: قوانغدونغ ، الصين
اسم العلامة التجارية: ASLI
رقم الموديل: ES-20
شروط الدفع والشحن
منتوج وصف
Electromagnetic High Frequency Horizontal Vertical Vibration Test Machine
This vibration test equipment is designed for product vibration and shock environmental testing, environmental stress screening, and reliability testing. It serves aerospace, communications, electronics, electrical, and home appliance industries. The platform complies with various test specifications including IEC, MIL-STD, JIS, and ASTM standards.

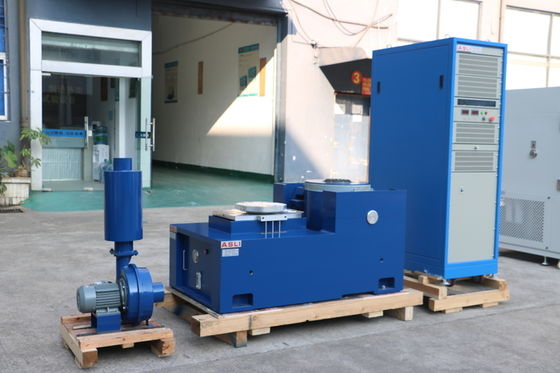

Electromagnetic High Frequency Vibration Test Machine with 20KN Force and ISTA 3A Compliance for Packaged Product Testing 0
Specifications
Model ES-10 ES-20 ES-30 ES-40
Rated Sine Force (N) 10000 20000 30000 40000
Frequency Range (Hz) 3-3000 3-3000 3-2800 3-2800
Rated Acceleration (m/s²) 1000 1000 1000 1000
Rated Speed (m/s) 1.8 1.8 1.8 1.8
Rated displacement (p-p) mm 70 80 11100 100
Max. Loading (Kg) 270 300 450 500
Moving coil (Kg) 14 30 40 50
Dimension of Moving coil (mm) Φ240 Φ320 Φ450 Φ450
Product Features
  • Flexible suspension system with straight line guide for strong bearing capacity, excellent guidance performance, and high stability
  • Central load airbag with large static stiffness and small dynamic stiffness for superior dynamic performance
  • Rapid self-examination diagnosis and chain protection for high safety and reliability
  • Air bag isolating and damping device eliminates need for special foundation while reducing vibration transmission
  • Compatible with horizontal and vertical expansion platforms
  • Works with various vibration controllers for simple operation
Horizontal Stand Features
  • Small loading bench achieves higher acceleration and working frequency
  • Integral horizontal bench and vibration bench for easy installation and adjustment
  • Static pressure track with V-shape design resists slope and bias-loading
  • Built-in oil pump with optimized structure for easy operation

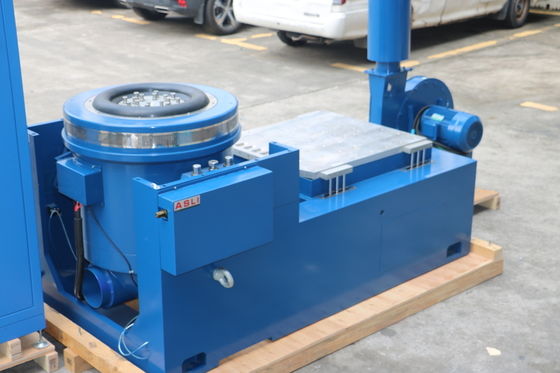

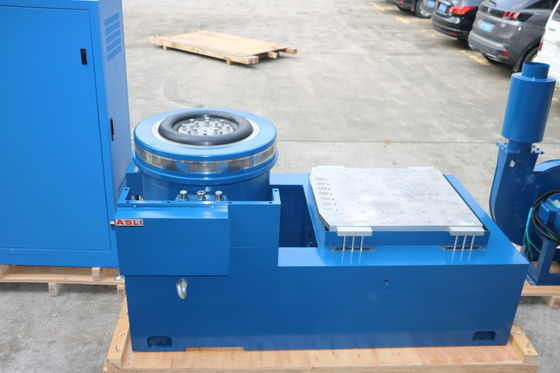

Electromagnetic High Frequency Vibration Test Machine with 20KN Force and ISTA 3A Compliance for Packaged Product Testing 1 Electromagnetic High Frequency Vibration Test Machine with 20KN Force and ISTA 3A Compliance for Packaged Product Testing 2
Packing & Delivery

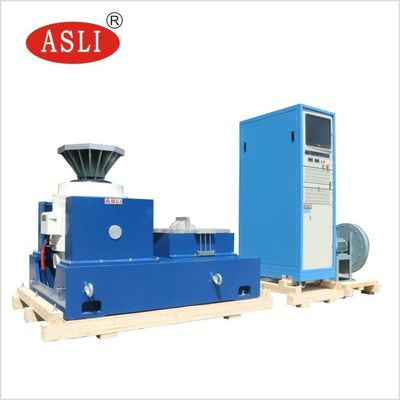

Electromagnetic High Frequency Vibration Test Machine with 20KN Force and ISTA 3A Compliance for Packaged Product Testing 3
Professional, environmentally friendly, and efficient packaging ensures the safety of your goods during transportation.
Company Profile

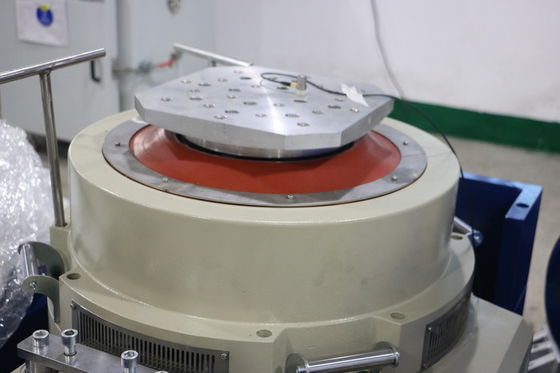

Electromagnetic High Frequency Vibration Test Machine with 20KN Force and ISTA 3A Compliance for Packaged Product Testing 4 Electromagnetic High Frequency Vibration Test Machine with 20KN Force and ISTA 3A Compliance for Packaged Product Testing 5 Electromagnetic High Frequency Vibration Test Machine with 20KN Force and ISTA 3A Compliance for Packaged Product Testing 6 Electromagnetic High Frequency Vibration Test Machine with 20KN Force and ISTA 3A Compliance for Packaged Product Testing 7 Electromagnetic High Frequency Vibration Test Machine with 20KN Force and ISTA 3A Compliance for Packaged Product Testing 8 Electromagnetic High Frequency Vibration Test Machine with 20KN Force and ISTA 3A Compliance for Packaged Product Testing 9
With 28 years of experience, we specialize in simulation environmental testing equipment and mechanical vibration/shock testing machines. Our CE-certified horizontal and vertical vibration testers are industry-leading products.
Frequently Asked Questions
Q1. What is your terms of packing?
A: PP film first, with 10mm foam between machine and case, enclosed in standard export plywood case.
Q2. What is your terms of payment?
A: 50% T/T deposit, with balance paid before delivery after product and package photos are provided.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU, DAP, DDP options available.
Q4. How about your delivery time?
A: Typically 30-60 days after receiving advance payment, depending on order specifics.
For more information about our Electromagnetic High Frequency Horizontal Vertical Vibration Test Machine, please contact us.
