منزل /المنتجات/نظام الاهتزاز شاكر/IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing

IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing

1
MOQ
$26,890
السعر
IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing
ميزات صالة عرض منتوج وصف طلب عرض أسعار
ميزات
مواصفات
اتجاه الاهتزاز: الاهتزاز الرأسي
قوة الاهتزاز: 20kn
طريقة التحكم: التحكم في الكمبيوتر
تسريع: 100g
نطاق التردد: 3 ~ 3500Hz
وزن الملف المتحرك: 30 كجم
نوع الطاقة: إلكتروني
تصنيف قوة الجيب: 10000N (ES-10) ، 20000N (ES-20) ، 30000N (ES-30) ، 40000N (ES-40)
نطاق التردد: 3-3000Hz (ES-10 ، ES-20) ، 3-2800Hz (ES-30 ، ES-40)
التسارع المقدر: 1000 م / ثانية 2
السرعة المقدرة: 1.8 م/ث
النزوح المقدر: 70 مم (ES-10) ، 80 مم (ES-20) ، 11100 مم (ES-30) ، 100 مم (ES-40)
ماكس التحميل: 270 كجم (ES-10) ، 300 كجم (ES-20) ، 450 كجم (ES-30) ، 500 كجم (ES-40)
وزن الملف المتحرك: 14 كجم (ES-10) ، 30 كجم (ES-20) ، 40 كجم (ES-30) ، 50 كجم (ES-40)
تحريك بُعد الملف: φ240mm (ES-10) ، φ320mm (ES-20) ، φ450mm (ES-30 ، ES-40)
إبراز:

IEC 60068-2-6:2008 Vibration Shaker System,20KN Vibration Force Vibration Shaker System,100g Acceleration High Frequency Vibrating Shaker

,

20KN Vibration Force Vibration Shaker System

,

100g Acceleration High Frequency Vibrating Shaker
معلومات اساسية
مكان المنشأ: قوانغدونغ ، الصين
اسم العلامة التجارية: ASLI
رقم الموديل: ES-20
شروط الدفع والشحن
منتوج وصف

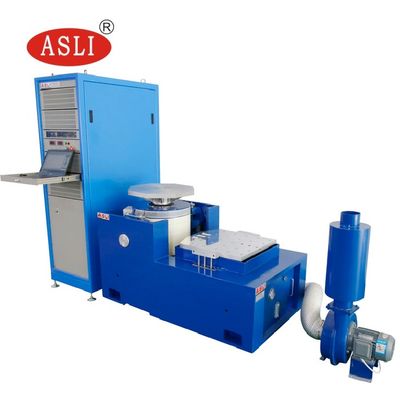

IEC 60068-2-6:2008 Sinusoidal Vibration Test High Frequency Vibrating Shaker
The IEC 60068-2-6:2008 Sinusoidal Vibration Test High Frequency Vibrating Shaker is designed for product vibration and shock environmental testing, environmental stress screening, and reliability testing. This versatile test platform meets various international specifications including IEC, MIL-STD, JIS, and ASTM standards. It is widely used in aerospace, communications, electronics, electrical, and home appliance industries.

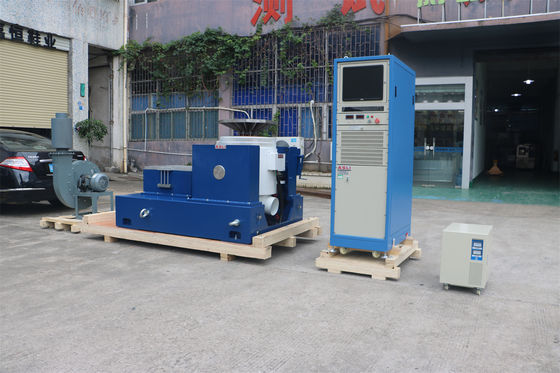

IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing 0 IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing 1
Specifications
Model ES-10 ES-20 ES-30 ES-40
Rated Sine Force (N) 10000 20000 30000 40000
Frequency Range (Hz) 3-3000 3-3000 3-2800 3-2800
Rated Acceleration (m/s²) 1000 1000 1000 1000
Rated Speed (m/s) 1.8 1.8 1.8 1.8
Rated displacement (p-p) mm 70 80 11100 100
Max. Loading (Kg) 270 300 450 500
Moving coil (Kg) 14 30 40 50
Dimension of Moving coil (mm) Φ240 Φ320 Φ450 Φ450
Product Features
  • Flexible suspension system with straight line guide for strong bearing capacity, excellent guidance performance, and high stability
  • Central load airbag with large static stiffness and small dynamic stiffness for superior dynamic performance
  • Rapid self-examination diagnosis and chain protection for high safety and reliability
  • Air bag isolating and damping device eliminates need for special foundation while reducing vibration transmission
  • Compatible with horizontal and vertical expansion platforms
  • Works with various vibration controllers for simple operation

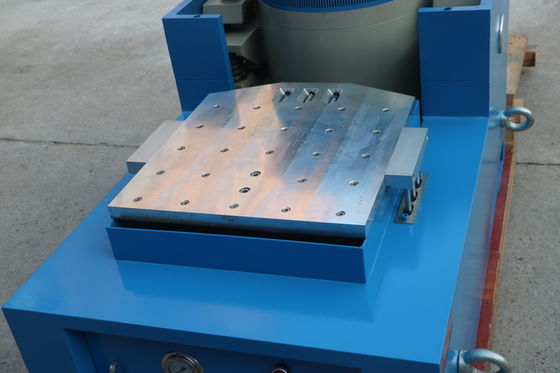

Horizontal Table Features
  • Small loading bench enables higher acceleration and working frequency
  • Integral design with vibration bench for easy installation and adjustment
  • Static pressure track with V-shape design resists slope and bias-loading
  • Built-in oil pump with excellent structure for easy operation

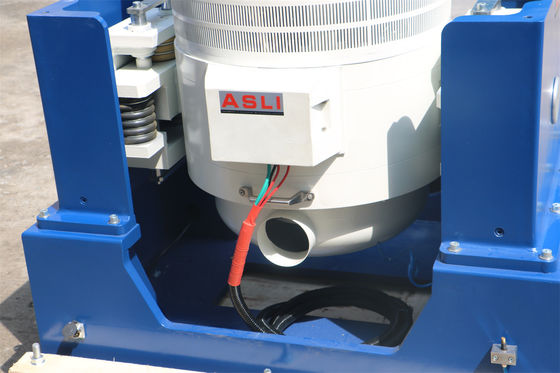

IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing 2 IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing 3

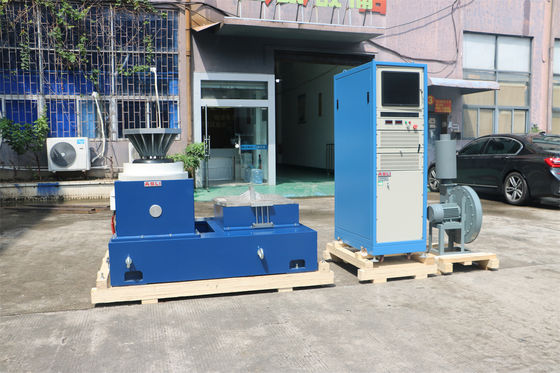

Packing & Delivery
IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing 4
We provide professional, environmentally friendly, and efficient packaging services to ensure the safety of your goods during transportation.

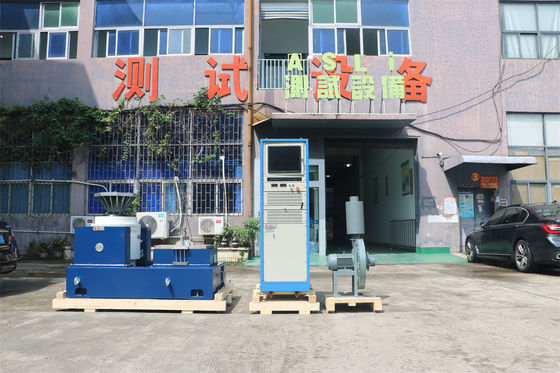

Company Profile
With 28 years of experience, we are a leading manufacturer of simulation environmental testing equipment and mechanical vibration/shock testing machines. Our IEC 60068-2-6:2008 Sinusoidal Vibration Test High Frequency Vibrating Shaker is a star product that has obtained CE certification.
IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing 5 IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing 6
Frequently Asked Questions
Q1. What is your terms of packing?
A: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU, DAP, DDP
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
For more information about our IEC 60068-2-6:2008 Sinusoidal Vibration Test High Frequency Vibrating Shaker, please contact us.
